Merlin Alimax - Custom Made Arrows - All Spines

Product Code:

MAMCMA

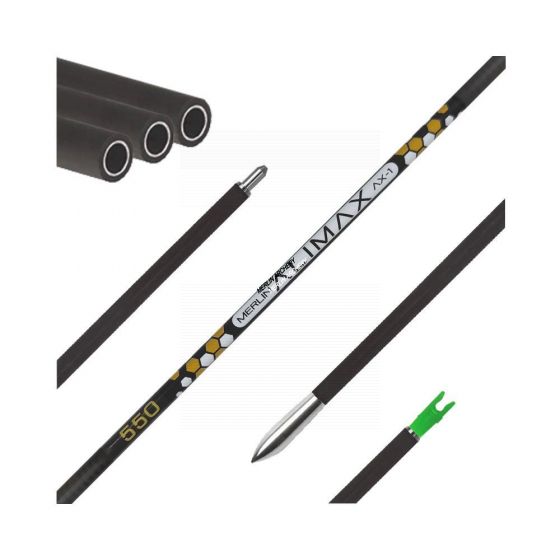

Introducing Merlin's New Line Of Arrow Shafts, The Alimax Series.

Unique 3.9mm Inside Diameter, Is Perfect For Both Recurve And Compound Archers Looking For A More Competitively Priced Alternative To Other A/C Shafts, Without Losing Quality.

Construction is 7075 Alloy Aluminium Core With A High Strength Carbon Wrap.

Matched Sets of 12 , With A Straigtness Of ±.002" And Weight Tolerance Of ±1.0gn.

Full Description

From £159.06

To £185.41

Add to Wish List

Custom Made: Allow 10 - 14 days

Best Price Promise

Configure Your Options1
Customize Merlin Alimax - Custom Made Arrows - All Spines
?

‘Spine’ is the term used when referring to the stiffness of the arrow.  Arrow shafts come in a variety of spines, and it is important the correct one is selected.

Many factors, such as bow type, arrow length and draw weight will all influence the selection.

Generally speaking, longer arrows and heavier draw weights will require stiffer spines, while shorter arrows and lighter draw weights will require weaker spines.

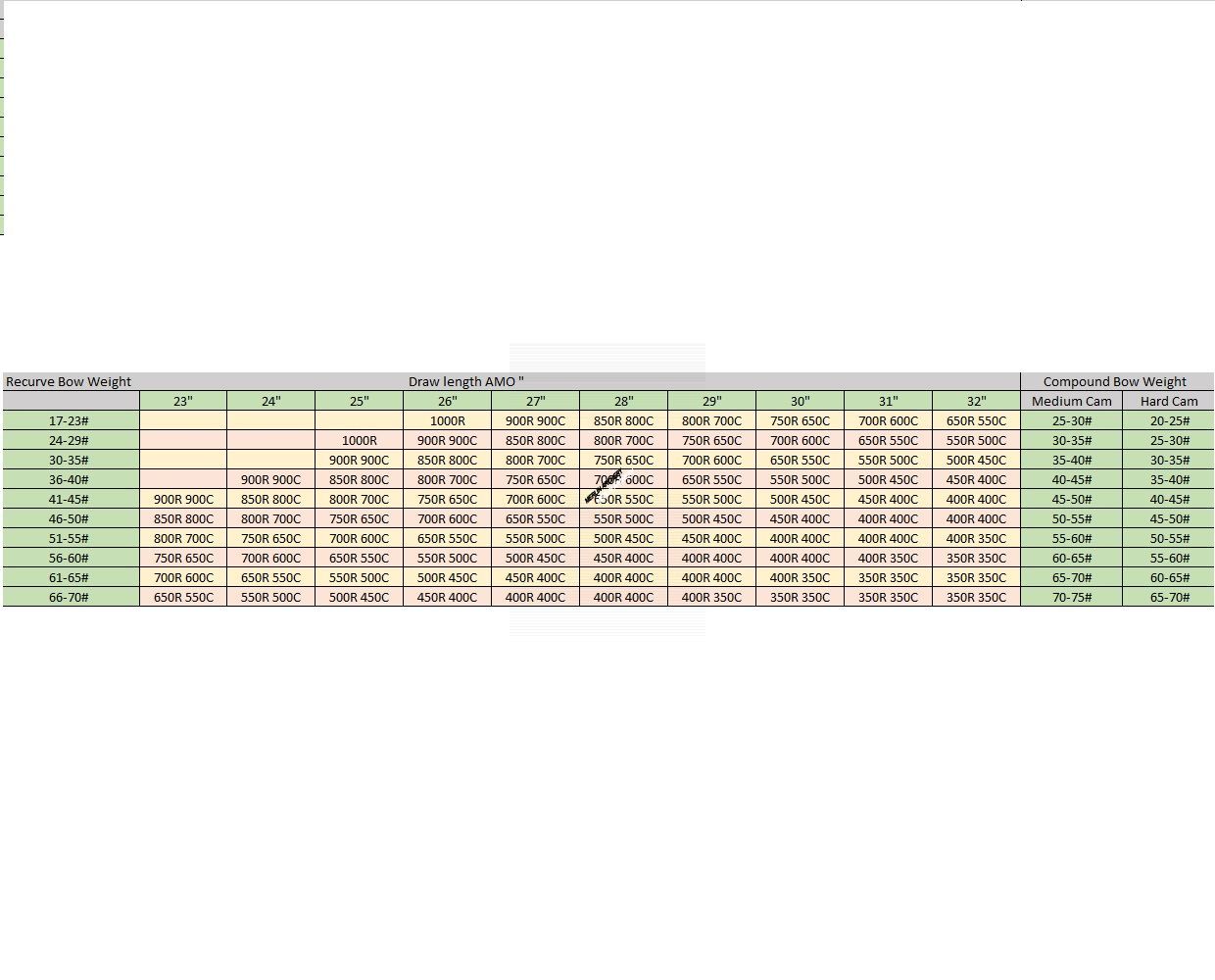

Arrow manufacturers provide ‘Arrow Selection Charts’ which will enable you to cross reference your measurements with their product line.  Use these charts to help you identify the correct arrow spine, or drop us an email if you would like some help.

!
?

A fletching is used to stabilise the arrow.

There is no golden rule about what size fletching to use.  Generally speaking, the smaller the arrow the smaller the fletching, and vice-versa.

The more finely tuned the bow, the less work the fletching needs to do to straighten the arrow. In fact, a super tuned bow can shoot an arrow without any fletchings surprisingly well.

The type of bow you use also makes a difference.  For example, a compound archer using a release aid can use smaller fletchings as the arrow is launched with less flex and requires less correction.  But archers with a finger loose generate more arrow flex and can benefit from larger fletchings helping to stabilise the flight more quickly.

By default we offer 3 options.  (Other options are available, such as Spin Vanes and arrow wraps.  Please contact our customer service team if for a bespoke quotation)

1) Bare Arrows. No fletchings are supplied or fitted.

2) Plastic Vanes.  By far, the most popular type of fletching.  Durable, easy to glue and low maintenance.

3) Feathers. Very forgiving and stabilise the arrow very quickly.  They have a built in natural spin when fletched straight, or are commonly fletched with a helical to increase spin and maximise arrow stability.

They are often used on traditional bows that are shot from the shelf or hand, as feathers do not deflect in the same way as a plastic vane, but simply brush past.

Although they are sold as ‘left wing’ and ‘right wing’, this does not reflect the hand of the archer. It is the wing of the bird, not the handedness of the archer.

!
?
!
!
!

* Required Fields

Your Customization
Merlin Alimax - Custom Made Arrows - All Spines

In stock

£159.06

Summary

    Introducing Merlin's New Line Of Arrow Shafts, The Alimax Series.

    Unique 3.9mm Inside Diameter, Is Perfect For Both Recurve And Compound Archers Looking For A More Competitively Priced Alternative To Other A/C Shafts, Without Losing Quality.

    Construction is 7075 Alloy Aluminium Core With A High Strength Carbon Wrap.

    Matched Sets of 12 , With A Straigtness Of ±.002" And Weight Tolerance Of ±1.0gn.

    Specifications:

    • High-strength carbon fibre bonded to a 7075 alloy core
    • Straigtness Of ±.002"
    • Weight Tolerance Of ±1.0gn
    • 13 Available Spines : 350-1000
    • Stainless Steel Break Of Points Included
    • 7075 Nock Pins Included
    • Small Groove Pin Nocks Included (Colour May Vary)



    Spine OD GPI AMO Stock Length Point weight
    350 6.06 10.87 32" 100-120gr
    400 5.88 9.81 32" 100-120gr
    450 5.77 9.13 32" 100-120gr
    500 5.68 8.66 32" 100-120gr
    550 5.61 8.28 32" 100-120gr
    600 5.52 7.81 31" 80-100gr
    650 5.46 7.56 31" 80-100gr
    700 5.40 7.10 31" 80-100gr
    750 5.39 6.93 31" 80-100gr
    800 5.32 6.75 31" 80-100gr
    850 5.30 6.50 30" 60-80gr
    900 5.23 6.19 30" 60-80gr
    1000 5.17 5.94 30" 60-80gr



    Components:

    Due To The Unique I/D 3.9mm, Only 3.9mm Alimax Points And 3.9mm Alimax Nock Pins Will Fit These Shafts.

    The Nock Pins Will Take Any Style Pin Nocks.
